PCB surface cleaning machine SMT Professional Manufacturer
Features:
☆Modular drawer type design,brush cleaning or roller brush cleaning are synchronous switched mode at any time according to the needs of different work,flexibility.
☆PLC control system,HMI control panel,easier operation.
☆Use high speed spiral brush can improve cleanliness and save the consumption of sticky dust paper.
☆Use high quality cleaning roller to provide the best cleaning effect and service life.
☆Patent coupling transmission structure,is more conducive to the operation of the machine and the longer component service life.
☆Roller group and support group drawer type design for easy operation and maintenance.
☆Can be used flat-bottomed support to flat contact PCB,more conducive to the cleaning effect.
☆Three color warning device to provide different warning information.
Technical parameter：
| Description | PCB cleaning machine is brush roller single type cleaning machine .It is used between loader and printing machine,suitable for AI and SMT cleaning needs, can achieve the requirements of very high standard cleaning needs. | ||||||||
| PCB thickness | 0.4～5mm | ||||||||
| Power source | 1Ph 300W 220VAC 50/60Hz | ||||||||
| Air supply | Air inlet pipe zize 8mm | ||||||||
| Cleaning sticky roller | Upper*2 | ||||||||
| Sticky dust paper | Upper*1 roll | ||||||||
| Single side cleaning support | One set of supporting frame | ||||||||

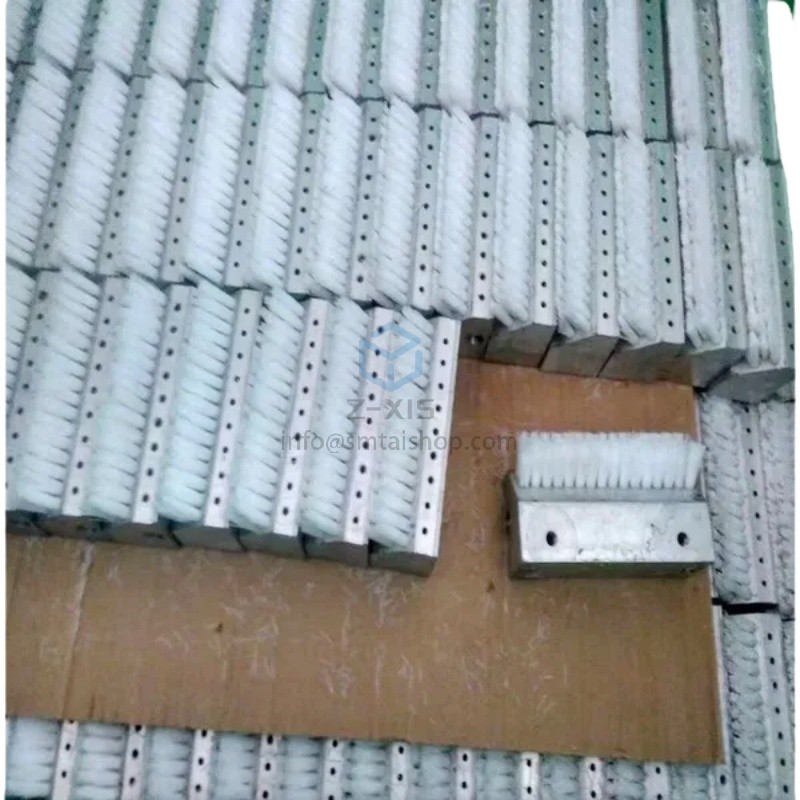

| Brush | Anti static、high density brush | ||||||||
| Dust collection group | Volume collect box | ||||||||
| Speed | 0～9m/min(Adjustable) | ||||||||
| Antistatic device | A set of inlet device and a set of outlet device. | ||||||||
Specification parameter：
| Dimension（L*W*H） | 840*560*1400 | ||||||
| Track length | 500mm | Power source | 1∮220V | ||||
| Track adjustable width | 50-250mm | Effective cleaning width | 50～250mm | ||||
| Track height | 900±25mm(or customized) | Track fixed side | Front side fixed(or back side fixed) | ||||
| Effective PCB size | L400*W(50-250) | Transport direction | L→R or R→L | ||||
Contact：
Call to discuss SMT machine please click WhatsApp SMT
Email to SMT Specialist please click SMT Specialist
SMT Professional Manufacturer PCB Cleaning Machine
The product is suitable for use in automotive electronics, smart home products, communications electronics, consumer electronic product manufacturing process,
to improve product reliability and to remove foreign bodies and electrostatic PCB surface
